In bias ply tire construction, the carcass of the tire structure consists of diagonally oriented plys. We manufacture a range of bias cutters designed to perform the angular cut that produces these plys.

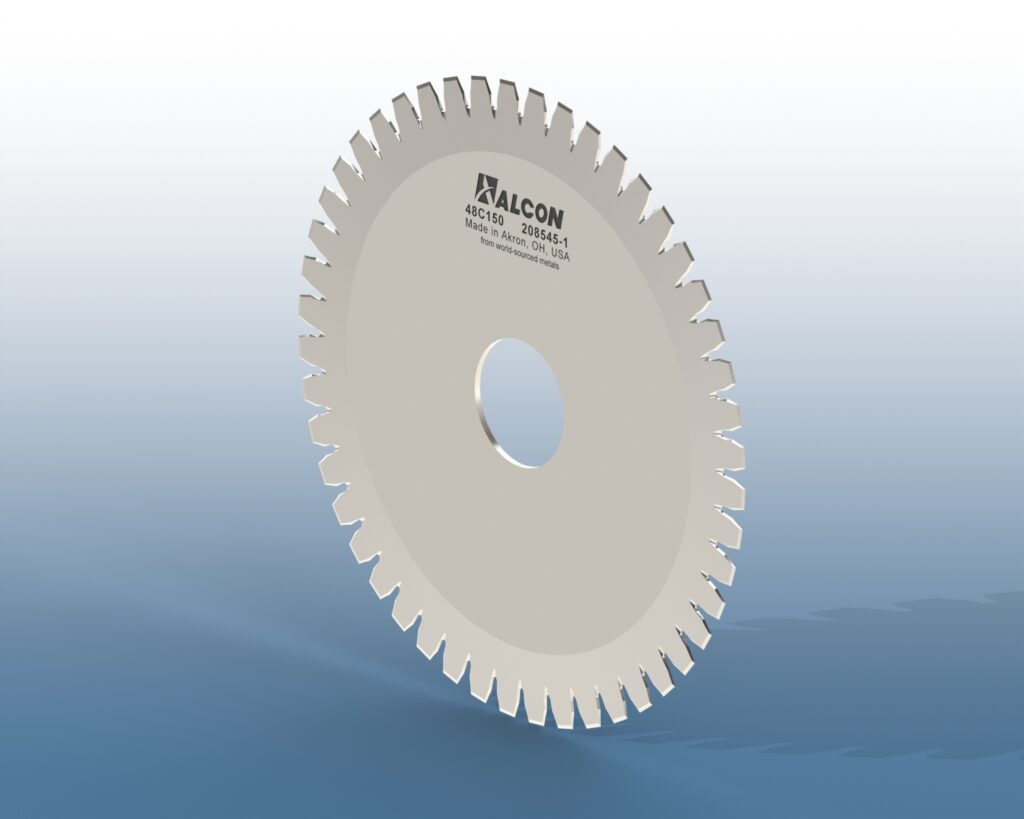

| OD (Nominal) | 3.76" |
|---|---|
| ID (Nominal) | 0.752" |
| Thickness (Nominal) | 0.04" |
| Primary Sharpening/Edge Angle | 4º |
| Edge Radius | Sharp |
| Material | Tool Steel |
| Bevel Type | Double |
| Tooth Count | 48 |
| Hardness (Nominal) | 59-62 HRc |

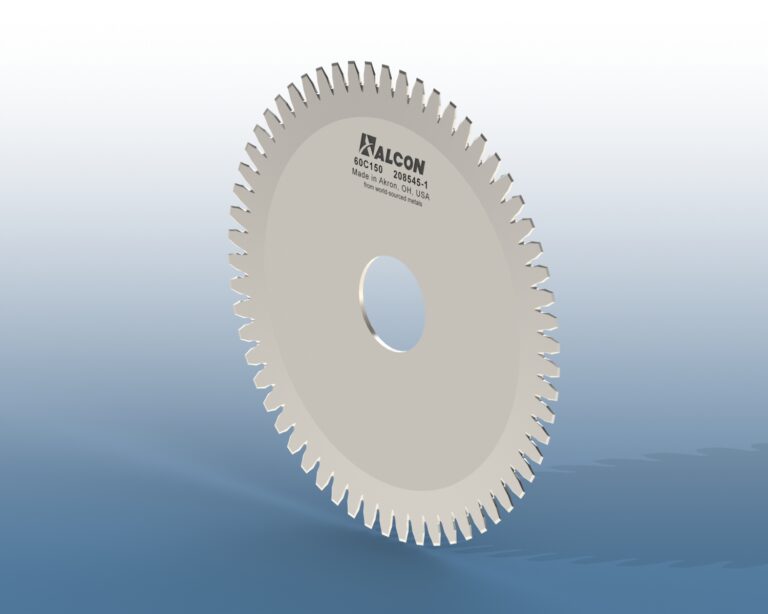

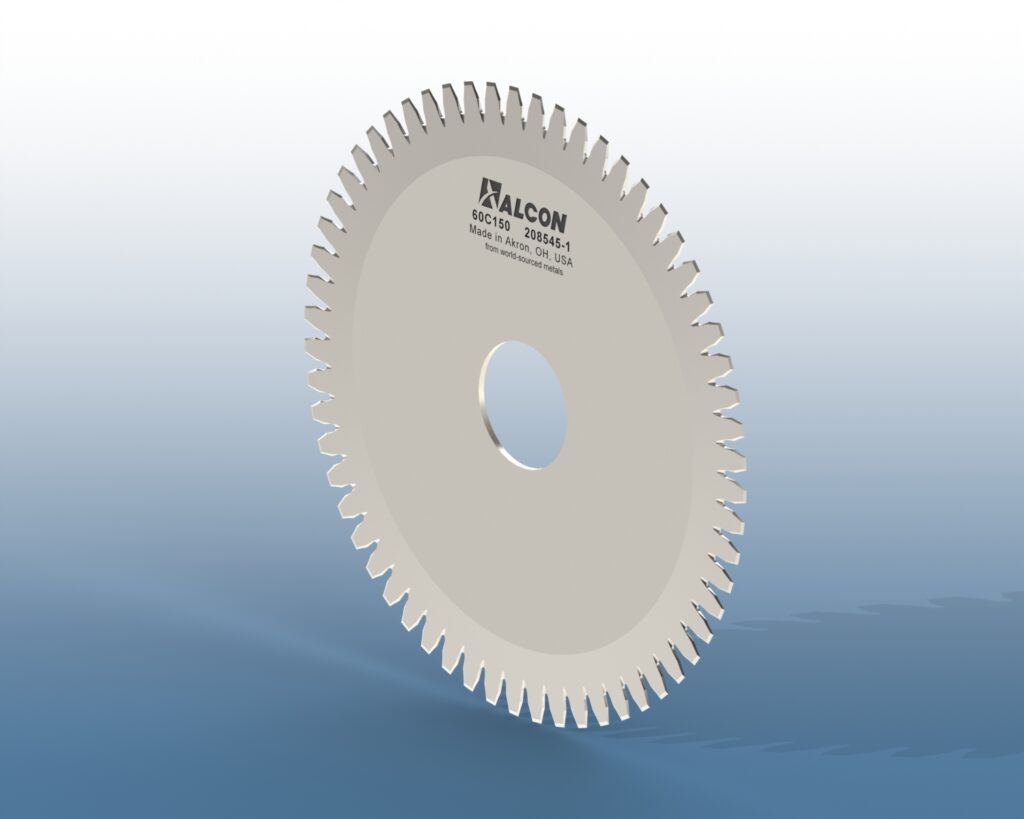

| OD (Nominal) | 3.76" |
|---|---|
| ID (Nominal) | 0.752" |
| Thickness (Nominal) | 0.04" |
| Primary Sharpening/Edge Angle | 4º |
| Edge Radius | Sharp |
| Material | Tool Steel |
| Bevel Type | Double |
| Tooth Count | 60 |
| Hardness (Nominal) | 59-62 HRc |
| OD (Nominal) | 3.76" |
|---|---|
| ID (Nominal) | 0.752" |
| Thickness (Nominal) | 0.04" |
| Primary Sharpening/Edge Angle | 4º |
| Edge Radius | Sharp |
| Material | Tool Steel |
| Bevel Type | Double |
| Tooth Count | 72 |
| Hardness (Nominal) | 59-62 HRc |

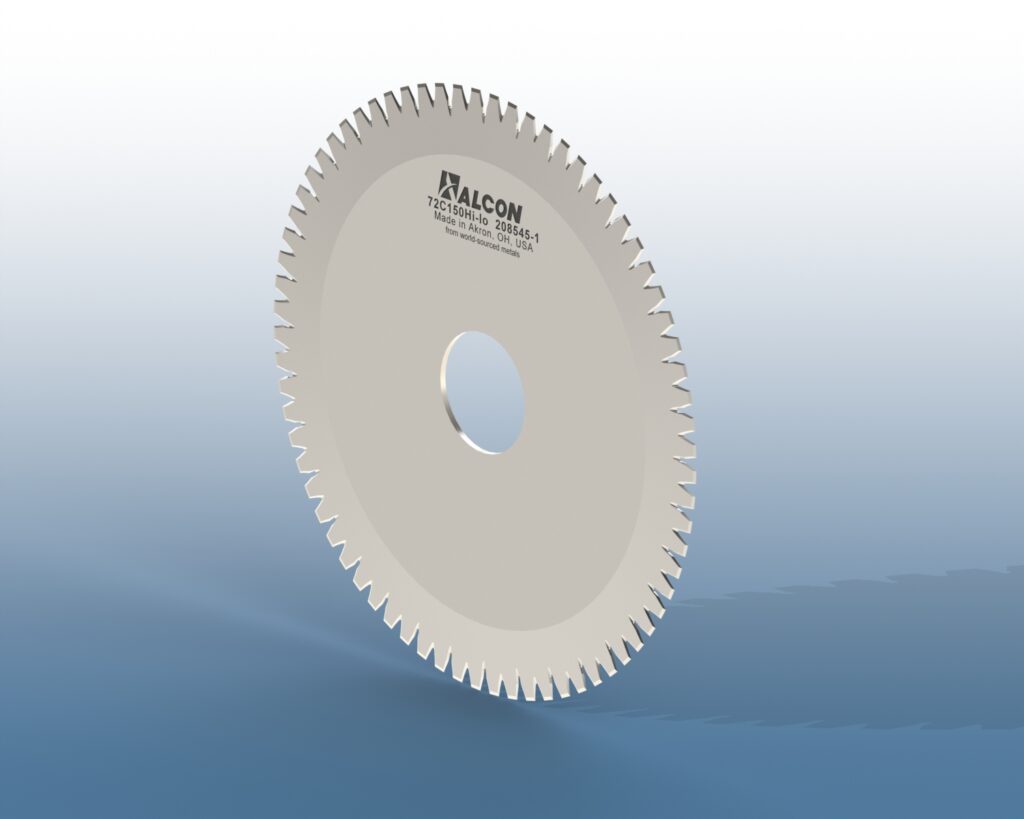

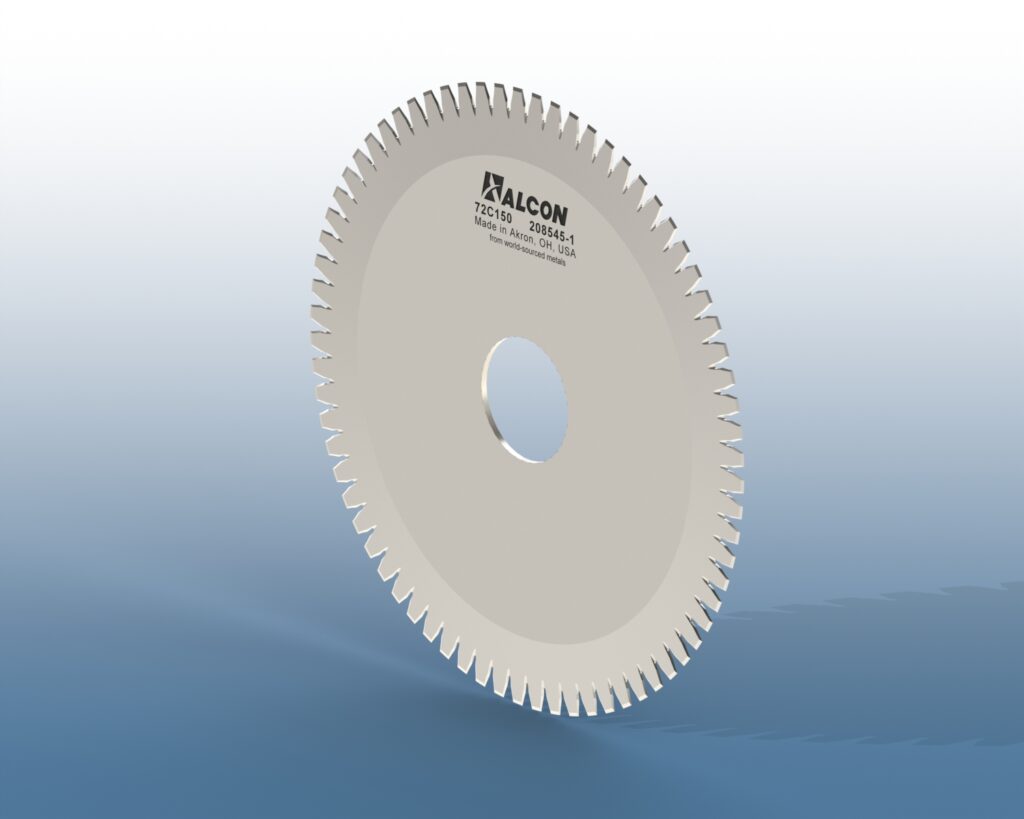

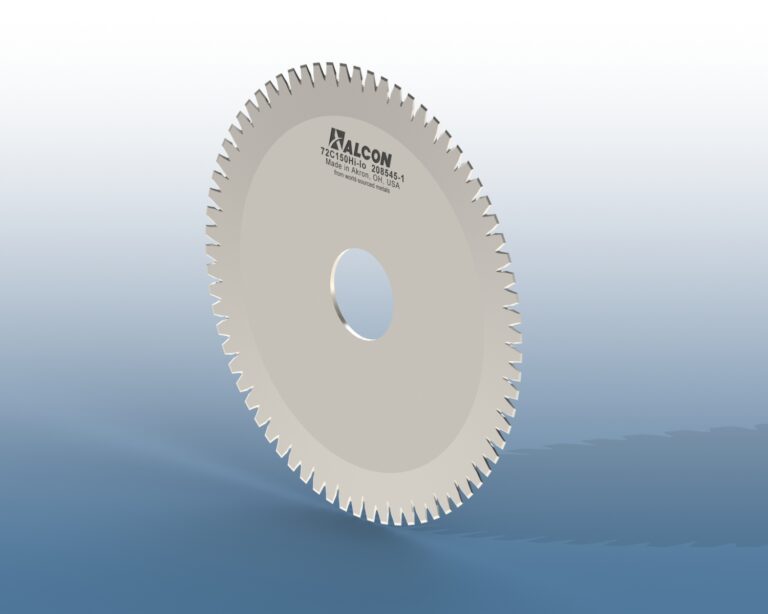

| OD (Nominal) | 3.76" |
|---|---|
| ID (Nominal) | 0.752" |
| Thickness (Nominal) | 0.04" |
| Primary Sharpening/Edge Angle | 4º |
| Edge Radius | Sharp |
| Material | Tool Steel |
| Bevel Type | Double |
| Tooth Count | 72 |
| Hardness (Nominal) | 59-62 HRc |

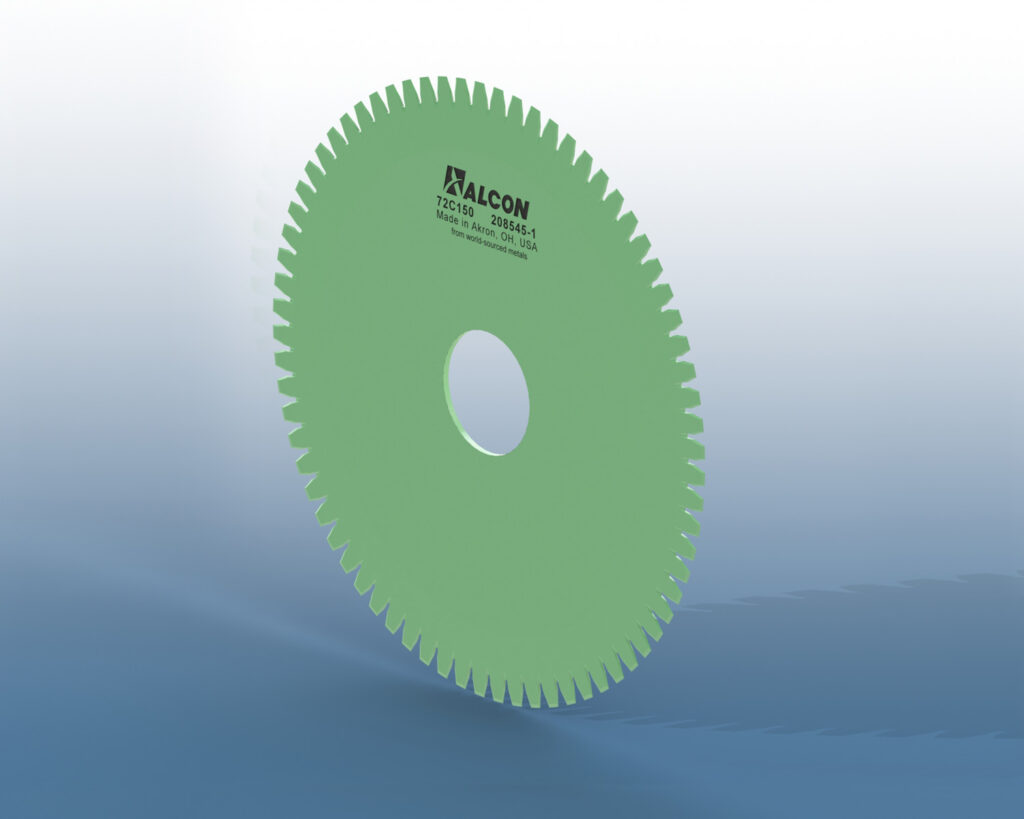

| OD (Nominal) | 3.76" |
|---|---|
| ID (Nominal) | 0.752" |
| Thickness (Nominal) | 0.04" |
| Primary Sharpening/Edge Angle | 4º |
| Edge Radius | Sharp |
| Material | Tool Steel Teflon coated |
| Bevel Type | Double |
| Tooth Count | 72 |
| Hardness (Nominal) | 59-62 HRc |

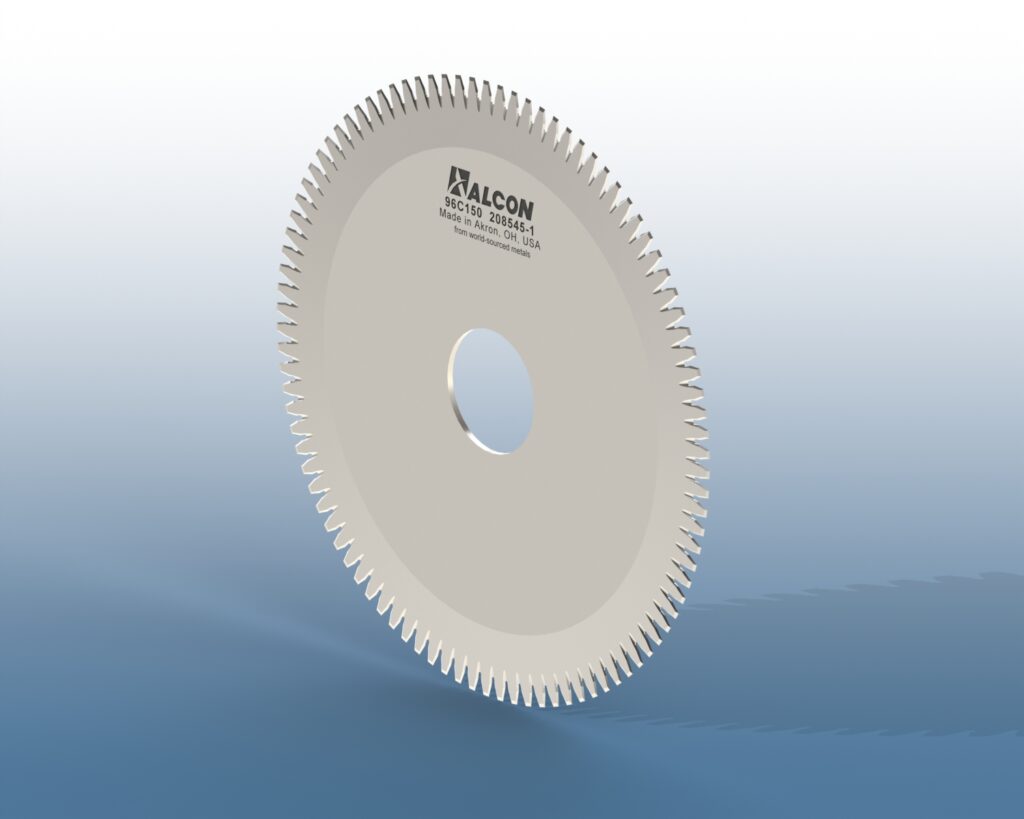

| OD (Nominal) | 3.76" |
|---|---|
| ID (Nominal) | 0.752" |
| Thickness (Nominal) | 0.04" |
| Primary Sharpening/Edge Angle | 4º |
| Edge Radius | Sharp |
| Material | Tool Steel |
| Bevel Type | Double |
| Tooth Count | 96 |
| Hardness (Nominal) | 59-62 HRc |

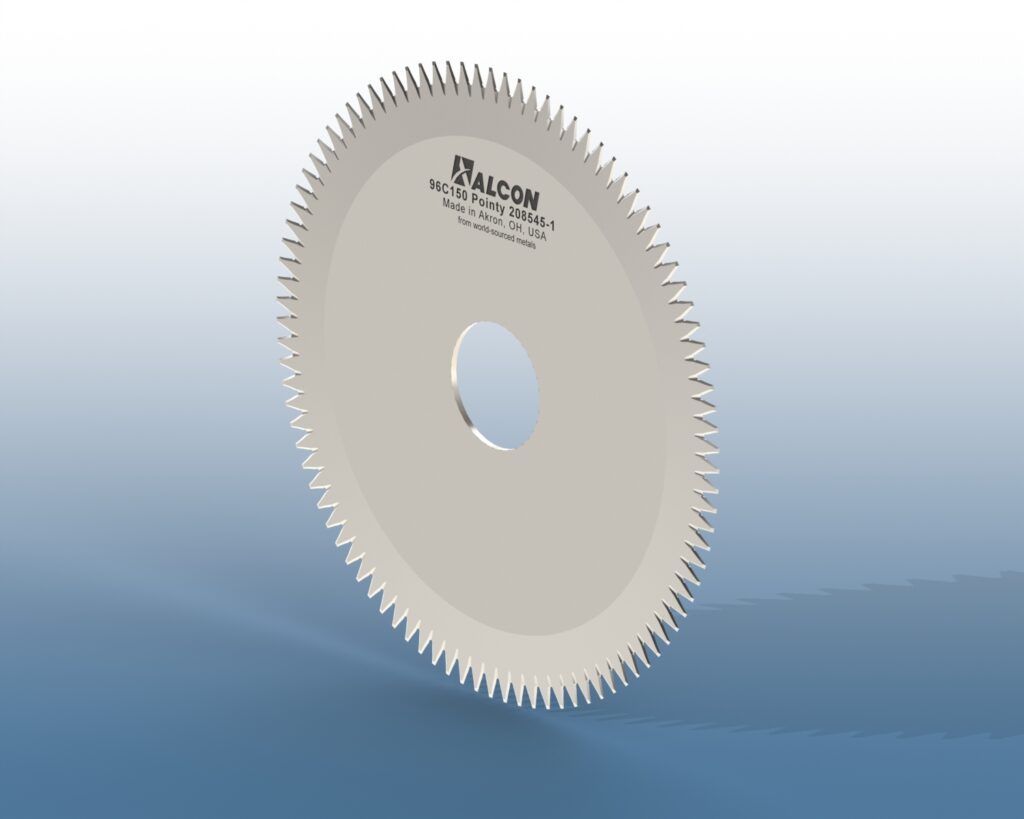

| OD (Nominal) | 3.76" |
|---|---|
| ID (Nominal) | 0.752" |
| Thickness (Nominal) | 0.04" |
| Primary Sharpening/Edge Angle | 4º |
| Edge Radius | Sharp |
| Material | Tool Steel |
| Bevel Type | Double |
| Tooth Count | 96 |
| Hardness (Nominal) | 59-62 HRc |
| OD (Nominal) | 8.00" |
|---|---|
| ID (Nominal) | 1.500" |
| Thickness (Nominal) | 0.097" |
| Primary Sharpening/Edge Angle | 5º |
| Edge Radius | Sharp |
| Material | Tool Steel |
| Bevel Type | Double |
| Tooth Count | 96 |
| Hardness (Nominal) | 59-62 HRc |

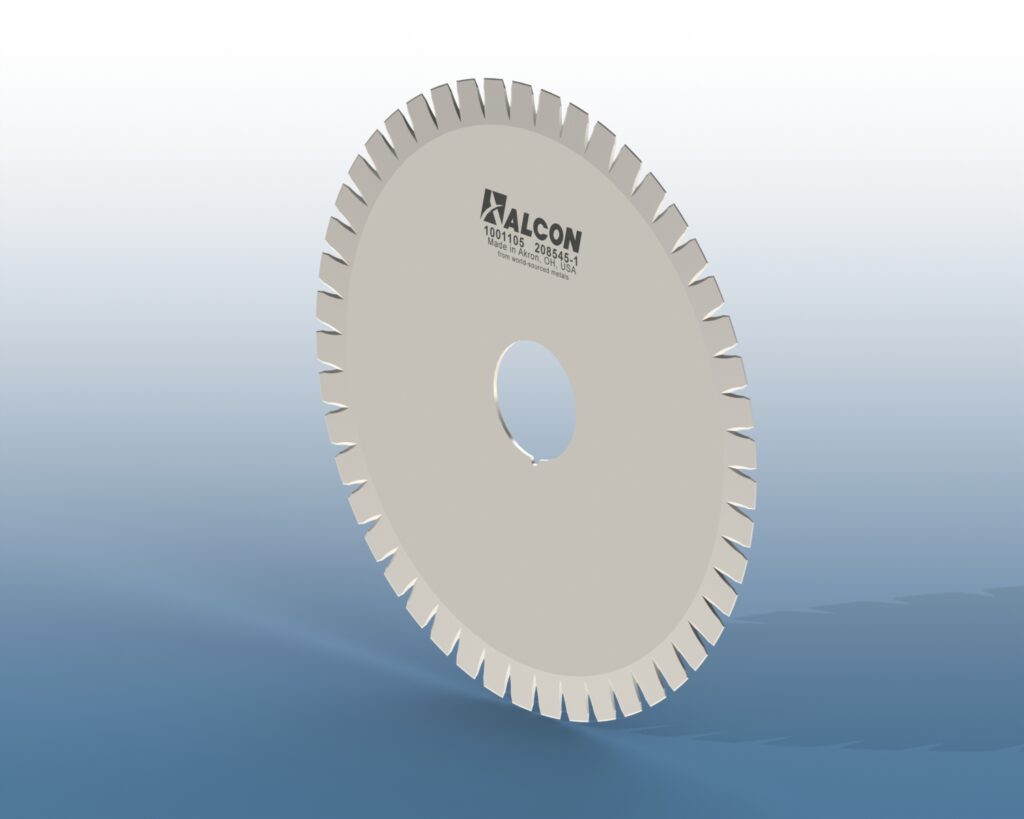

| OD (Nominal) | 10.50" |
|---|---|
| ID (Nominal) | 1.968" |
| Thickness (Nominal) | 0.065" |
| Primary Sharpening/Edge Angle | 4º |
| Edge Radius | Sharp |
| Material | Tool Steel |
| Bevel Type | Double |
| Tooth Count | 48 |
| Hardness (Nominal) | 59-62 HRc |
