Sleeve Anvils

Sleeve anvils are used in a score or crush-cutting conversion process for a wide range of industries and applications. They provide a consistent cutting surface with exceptional strength and durability.

FILTERS

Price

Price filter

Product Cut

6(0)
9(0)
12(0)
15(0)

Product Width (Nominal)

.75"(0)
1"(0)
1.25"(0)
1.88"(0)
2"(0)
2.5"(0)
3"(0)

Product Tooth Count

48(0)
60(0)
72(0)
96(0)

Product Hub Thickness (Nominal)

0.125"(0)
0.153"(0)
0.244"(0)
0.248"(0)
0.375"(0)

Product Hub Diameter (Nominal)

1.0"(0)
1.125"(0)
1.75"(0)
2.06"(0)

Product Rim/Web Thickness (Nominal)

0.04"(0)
0.045"(0)
0.05"(0)
0.06"(0)
0.09"(0)

Product Edge Shape

Bent(0)
Sharp bent(0)
Straight(0)
Straight(0)

Product Edge Profile

Sharp(0)

Product Edge Radius

R.002"(0)
R.004"(0)
R.005"(0)
Sharp(0)

Product Bevel Type

Double(0)
Single(0)

PRODUCTS

Discounts available for large quantities. Inquire with us at 330-773-9171 or sales@alcontool.com.

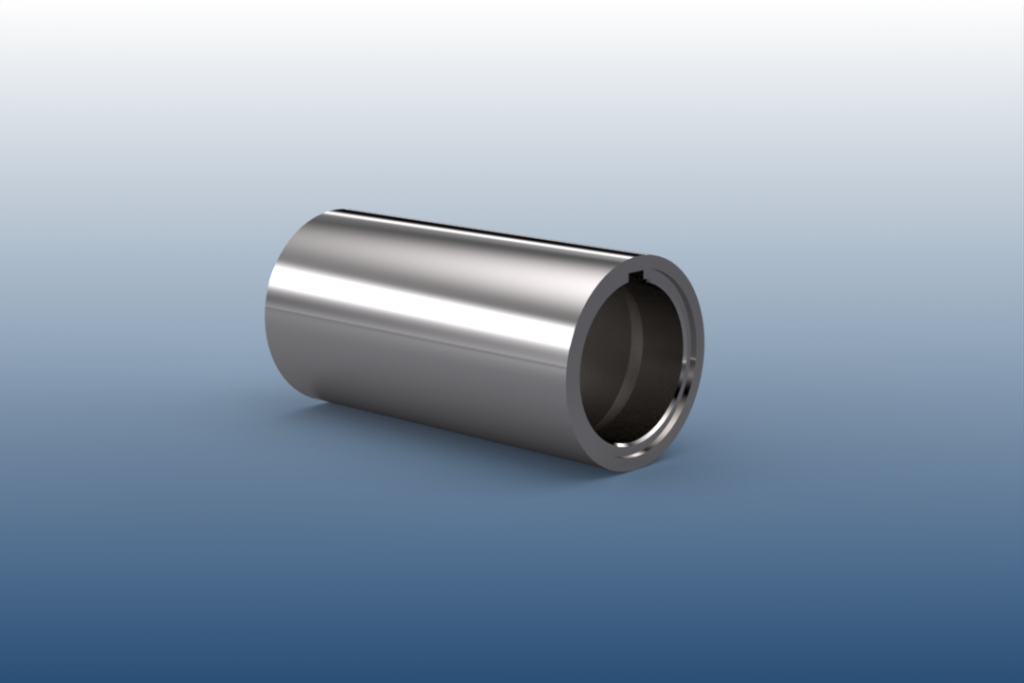

501

4x3x8" Sleeve

13 in stock

OD (Nominal)	4"
ID (Nominal)	3"
Material	52100
Hardness (Nominal)	65 HRc
Length (Nominal)	8"

$543.61

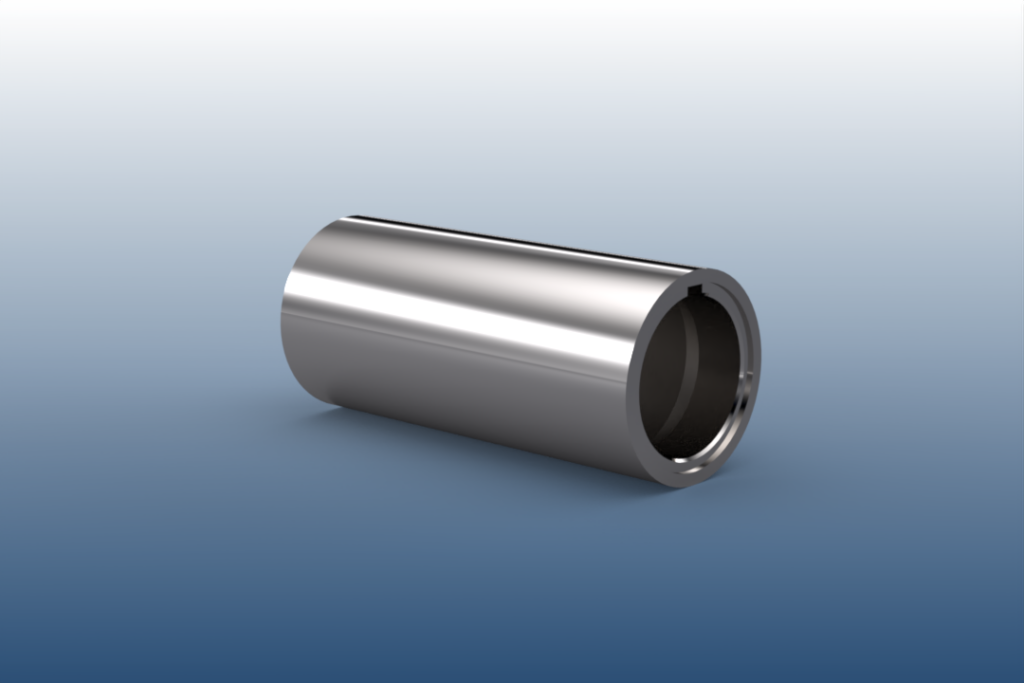

502

4x3x9" Sleeve

10 in stock

OD (Nominal)	4"
ID (Nominal)	3"
Material	52100
Hardness (Nominal)	65 HRc
Length (Nominal)	9"

$561.08

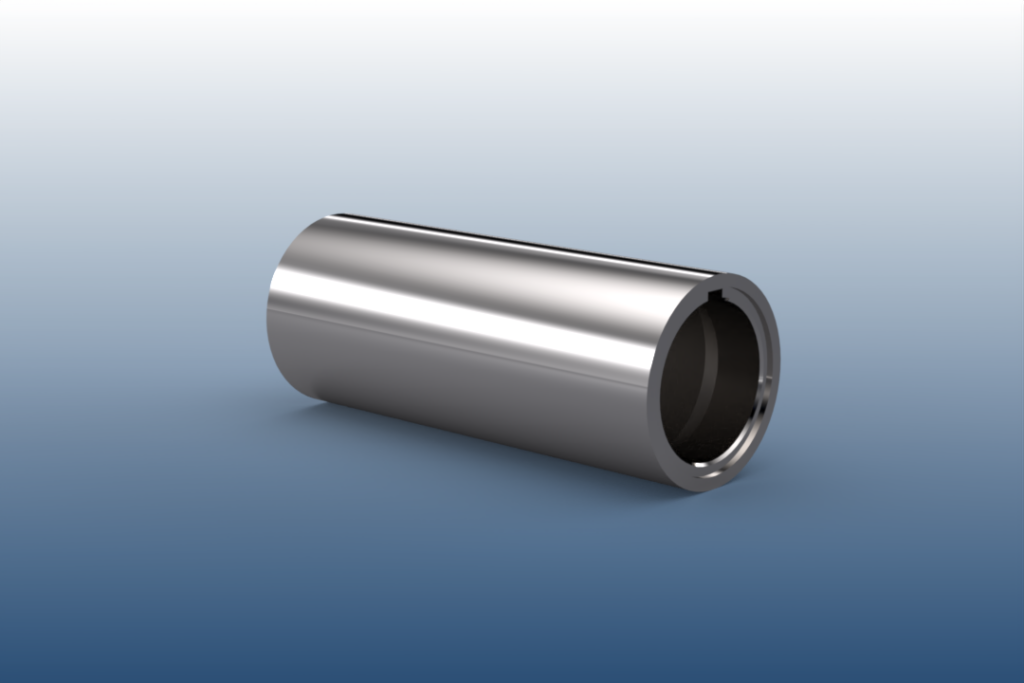

503

4x3x10" Sleeve

18 in stock

OD (Nominal)	4"
ID (Nominal)	3"
Material	52100
Hardness (Nominal)	65 HRc
Length (Nominal)	10"

$643.24

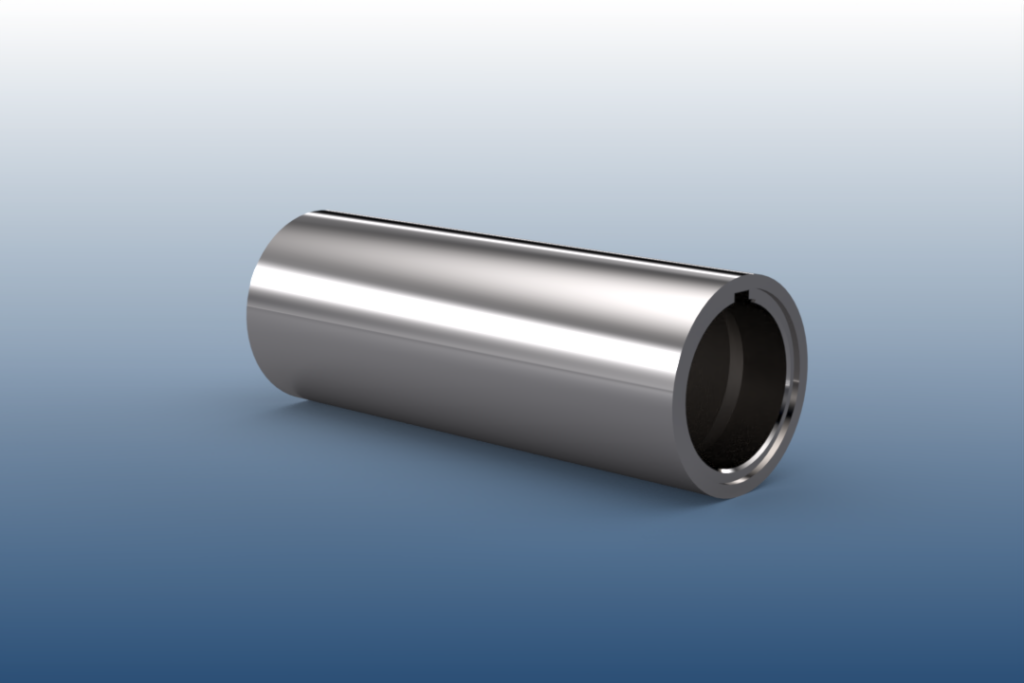

504

4x3x11" Sleeve

9 in stock

OD (Nominal)	4"
ID (Nominal)	3"
Material	52100
Hardness (Nominal)	65 HRc
Length (Nominal)	11"

$662.69

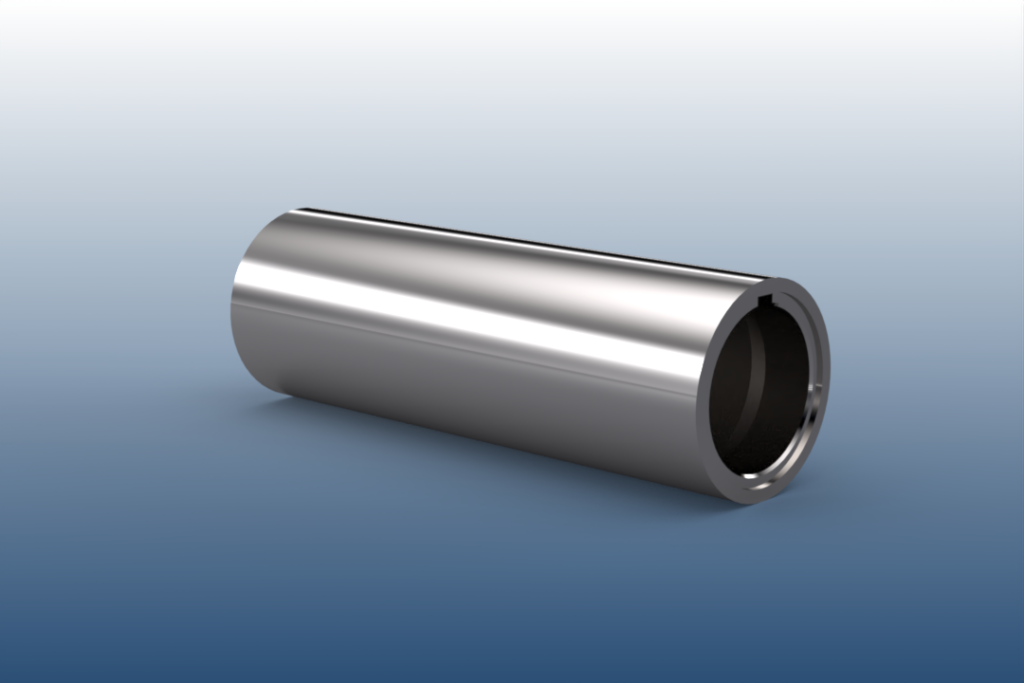

505

4x3x12" Sleeve

12 in stock

OD (Nominal)	4"
ID (Nominal)	3"
Material	52100
Hardness (Nominal)	65 HRc
Length (Nominal)	12"

$681.93

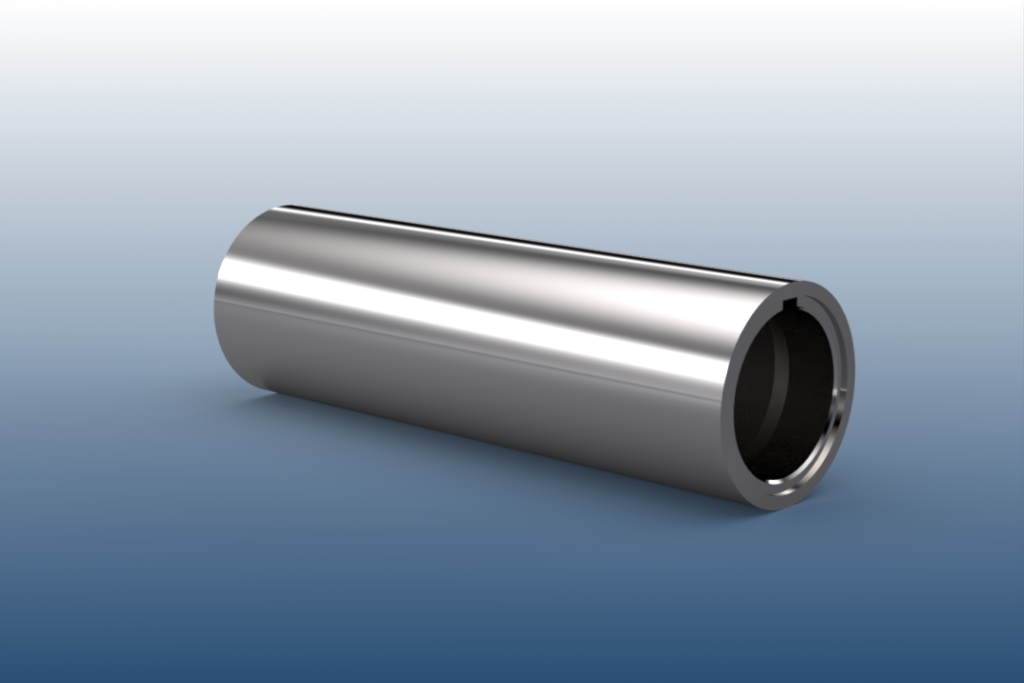

506

4x3x13" Sleeve

21 in stock

OD (Nominal)	4"
ID (Nominal)	3"
Material	52100
Hardness (Nominal)	65 HRc
Length (Nominal)	13"

$701.32

507

4x3x14" Sleeve

13 in stock

OD (Nominal)	4"
ID (Nominal)	3"
Material	52100
Hardness (Nominal)	65 HRc
Length (Nominal)	14"

$720.67

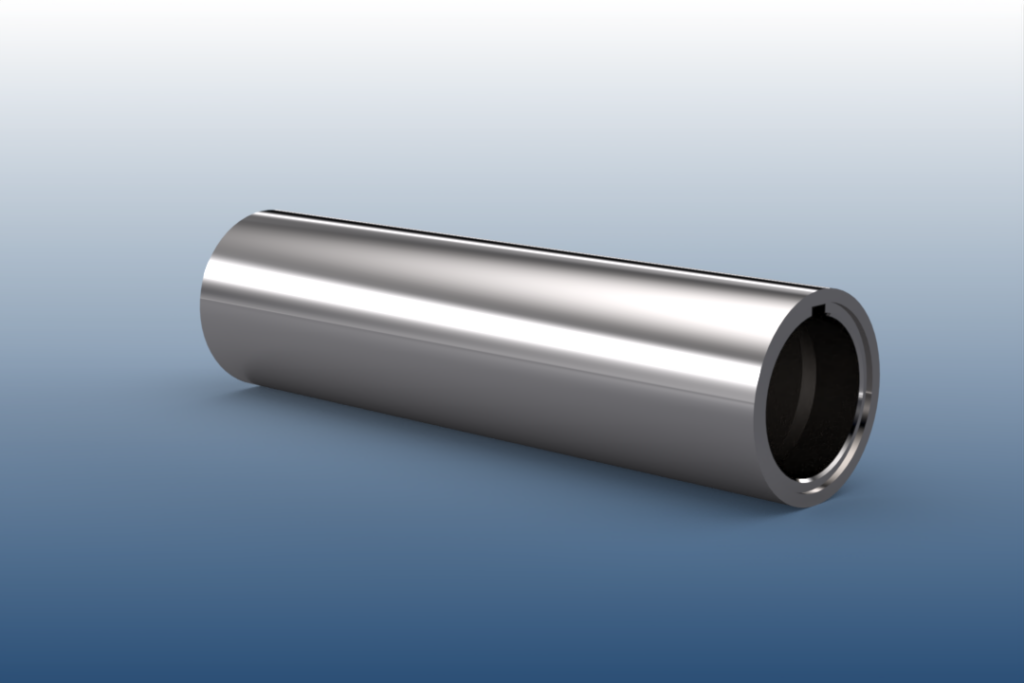

508

4x3x15" Sleeve

22 in stock

OD (Nominal)	4"
ID (Nominal)	3"
Material	52100
Hardness (Nominal)	65 HRc
Length (Nominal)	15"

$739.96

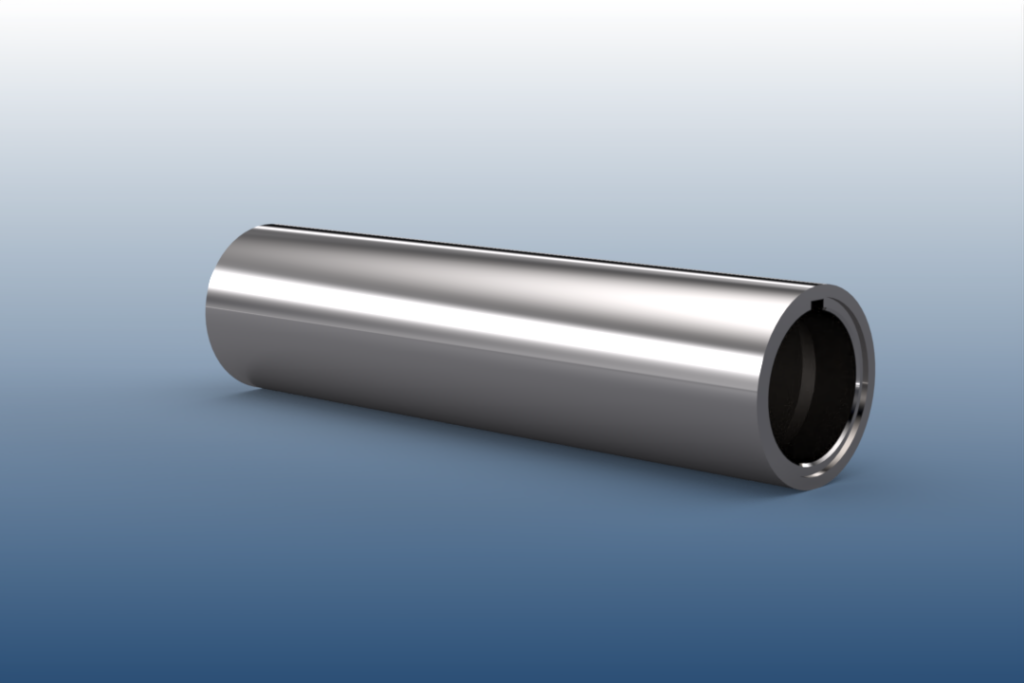

509

4x3x16" Sleeve

7 in stock

OD (Nominal)	4"
ID (Nominal)	3"
Material	52100
Hardness (Nominal)	65 HRc
Length (Nominal)	16"

$763.15

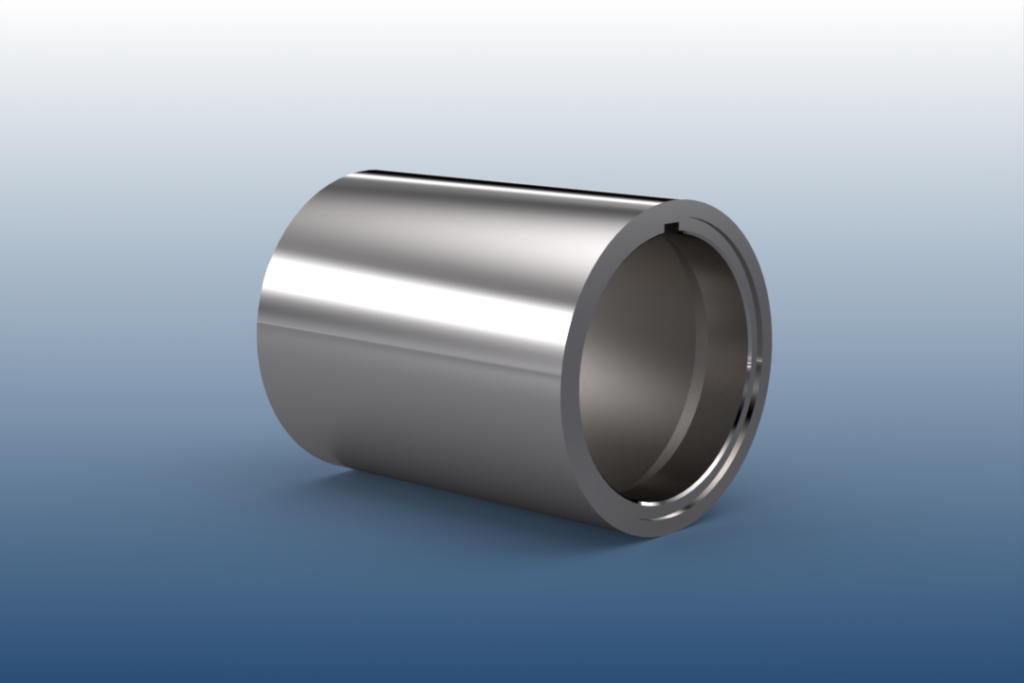

510

6.25x5x8" Sleeve

4 in stock

OD (Nominal)	6.25"
ID (Nominal)	5"
Material	52100
Hardness (Nominal)	65 HRc
Length (Nominal)	8"

$674.34

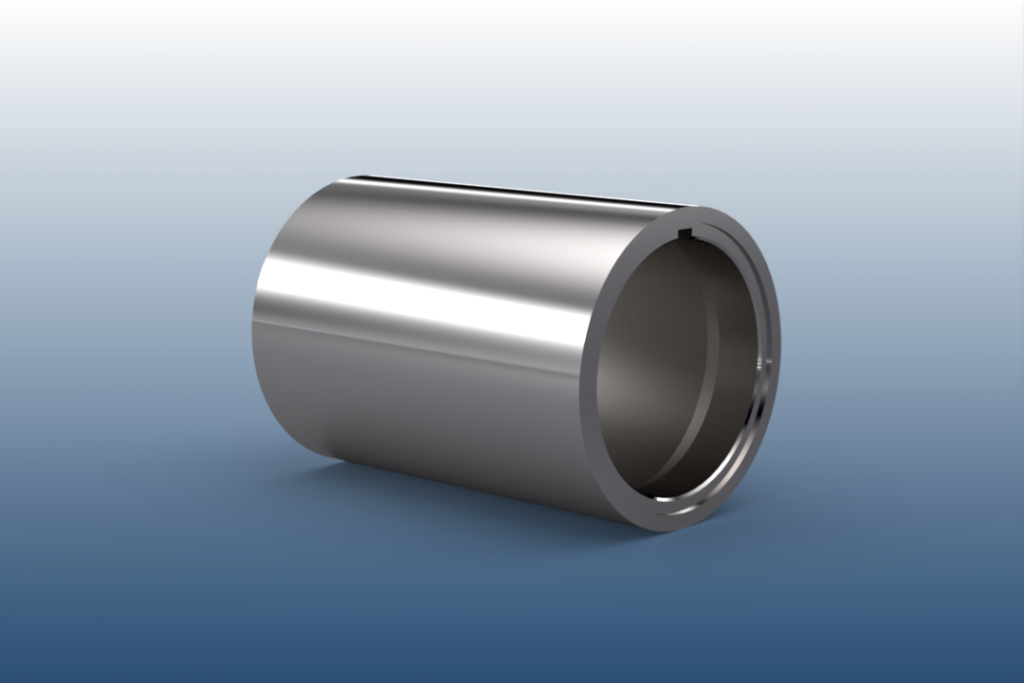

511

6.25x5x9" Sleeve

6 in stock

OD (Nominal)	6.25"
ID (Nominal)	5"
Material	52100
Hardness (Nominal)	65 HRc
Length (Nominal)	9"

$695.42

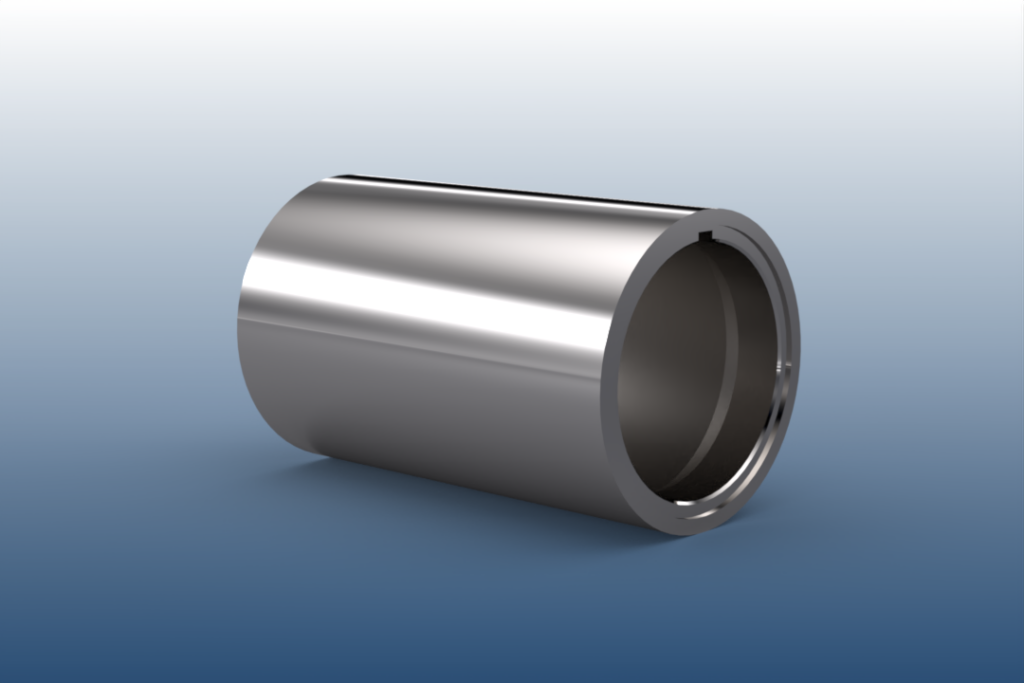

512

6.25x5x10" Sleeve

3 in stock

OD (Nominal)	6.25"
ID (Nominal)	5"
Material	52100
Hardness (Nominal)	65 HRc
Length (Nominal)	10"

$783.50

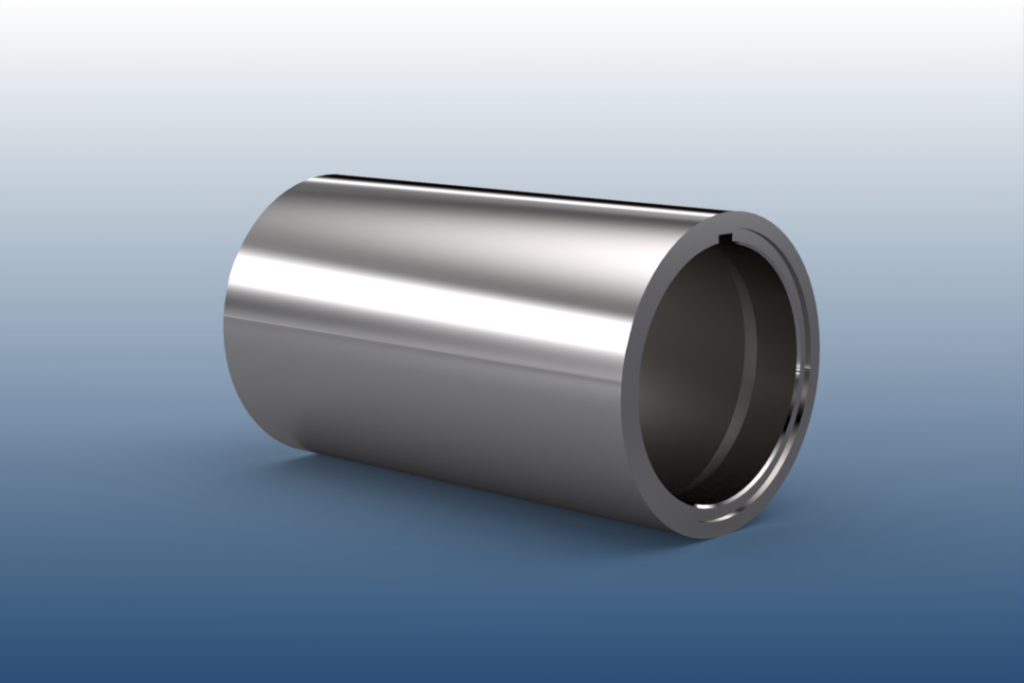

513

6.25x5x11" Sleeve

17 in stock

OD (Nominal)	6.25"
ID (Nominal)	5"
Material	52100
Hardness (Nominal)	65 HRc
Length (Nominal)	11"

$812.45

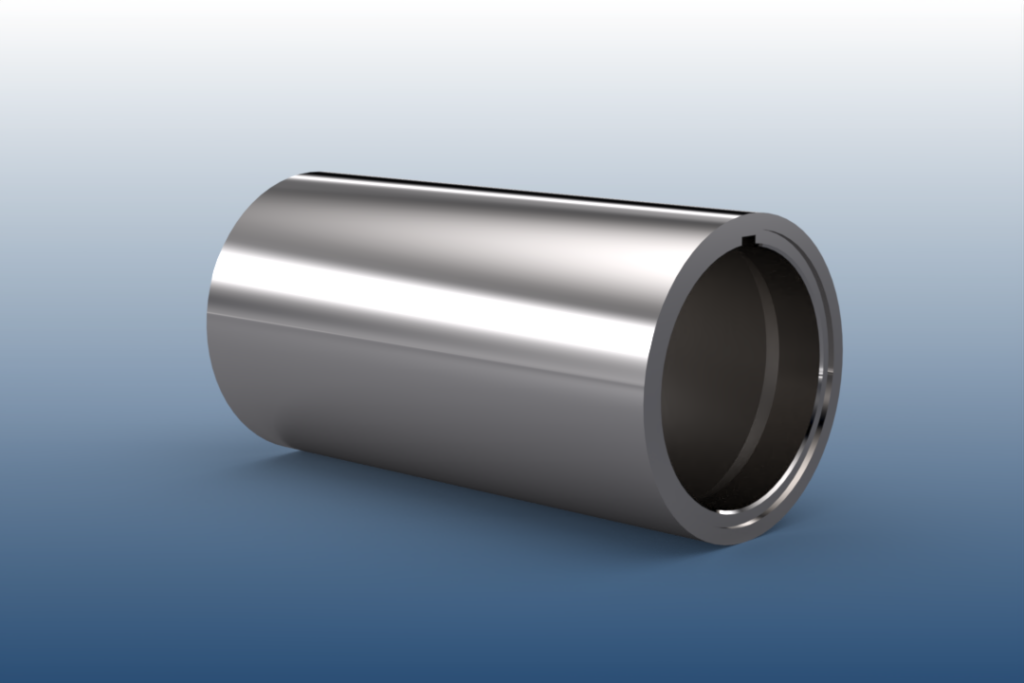

514

6.25x5x12" Sleeve

4 in stock

OD (Nominal)	6.25"
ID (Nominal)	5"
Material	52100
Hardness (Nominal)	65 HRc
Length (Nominal)	12"

$841.46

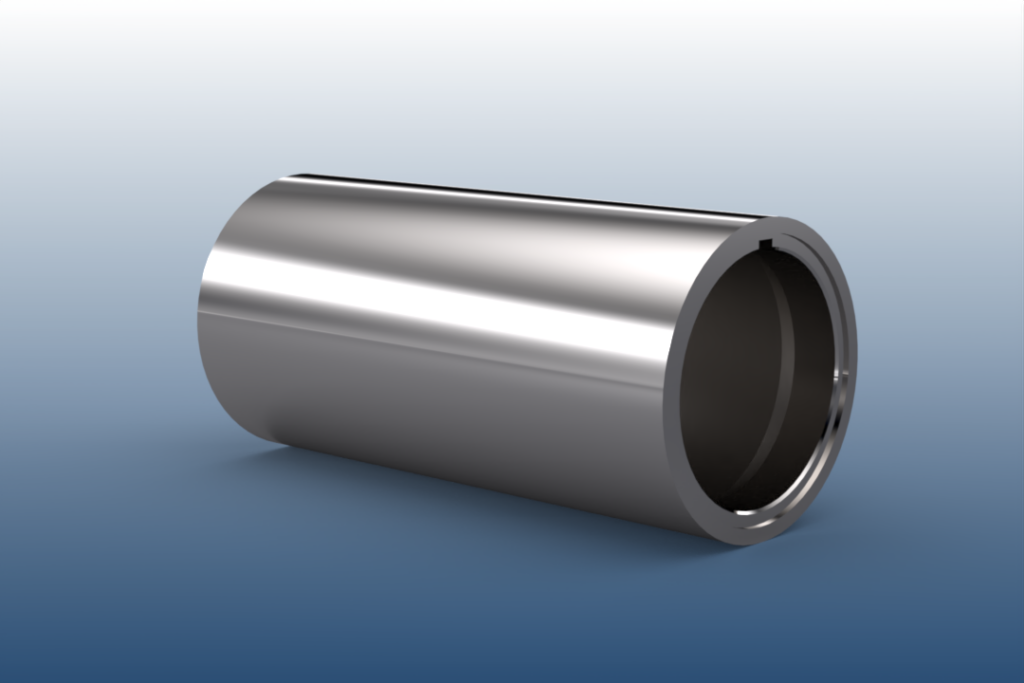

515

6.25x5x13" Sleeve

2 in stock

OD (Nominal)	6.25"
ID (Nominal)	5"
Material	52100
Hardness (Nominal)	65 HRc
Length (Nominal)	13"

$870.48

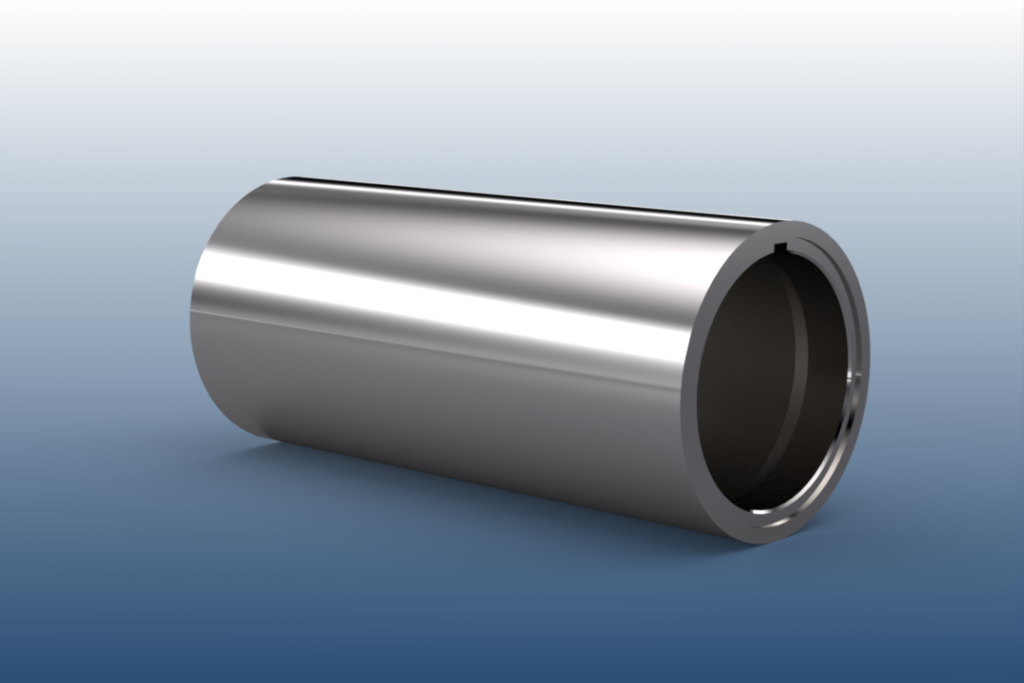

516

6.25x5x14" Sleeve

5 in stock

OD (Nominal)	6.25"
ID (Nominal)	5"
Material	52100
Hardness (Nominal)	65 HRc
Length (Nominal)	14"

$899.50

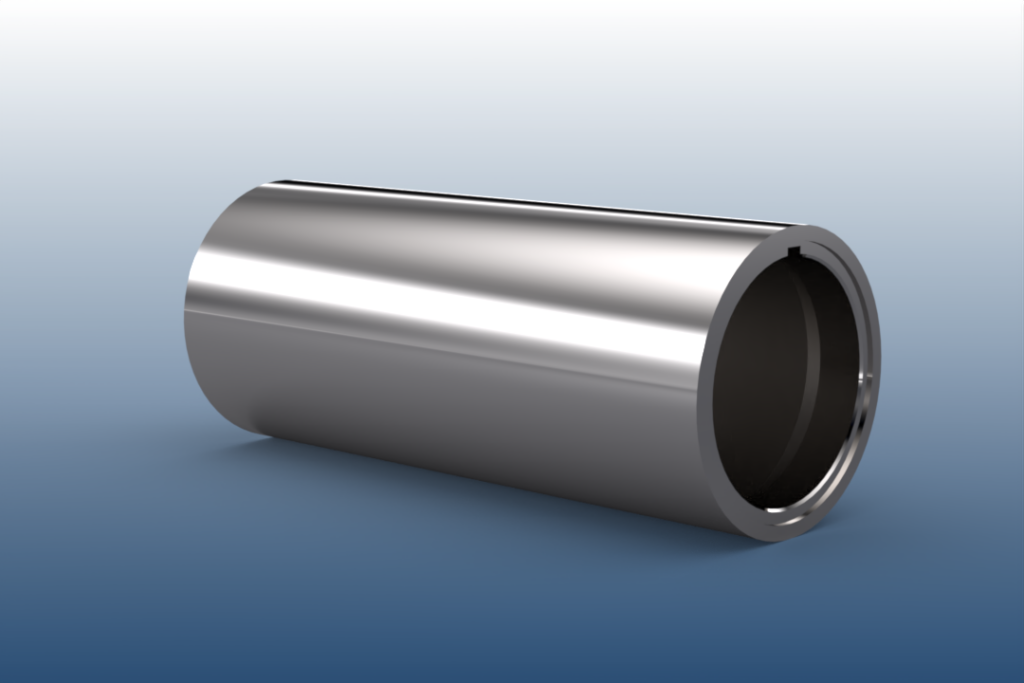

517

6.25x5x15" Sleeve

8 in stock

OD (Nominal)	6.25"
ID (Nominal)	5"
Material	52100
Hardness (Nominal)	65 HRc
Length (Nominal)	15"

$911.66

518

6.25x5x16" Sleeve

0 in stock

OD (Nominal)	6.25"
ID (Nominal)	5"
Material	52100
Hardness (Nominal)	65 HRc
Length (Nominal)	16"

Call for information
330.773.9171

Maximize the speed and throughput of your score and crush-cut conversion process with anvil sleeves from Alcon Tool
Made from high carbon, chrome alloy steel, which hardens completely through which is normally required for this product. 63-64 HRc guaranteed.
Provide a consistent cutting surface with exceptional strength and durability. Repeated grinding will not expose soft areas, as is the case with sleeves that have been carburized or case hardened.
16 RMS surface finish on the OD with OD/ID concentricity within .001” TIR.
Customization options include:
- Complete surface restoration of worn anvils
- Dimensions, material and coating options
- Design features such as taper-lock bushings or threaded end holes.
