| OD (Nominal) | 3.0" |
|---|---|
| ID (Nominal) | 0.866" |
| Primary Sharpening/Edge Angle | 60º incl. |
| Edge Radius | R.005" |
| Material | Carbon Steel |
| Bevel Type | Double |
| Hardness (Nominal) | 60-62 HRc |

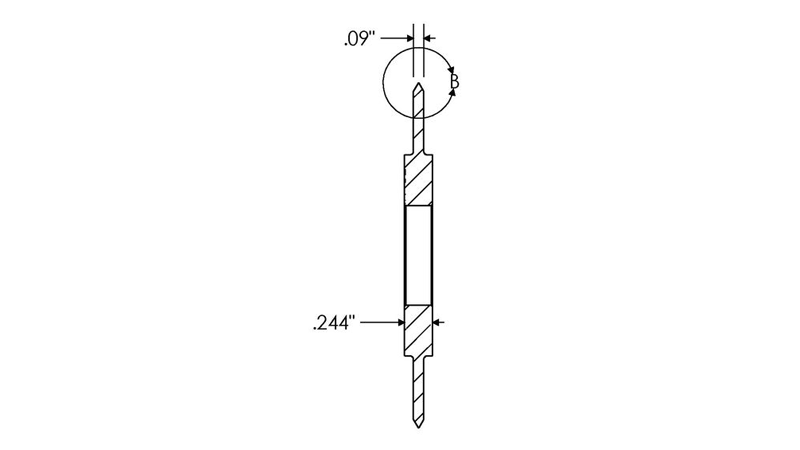

| Hub Thickness (Nominal) | 0.244" |
| Hub Diameter (Nominal) | 1.75" |
| Rim/Web Thickness (Nominal) | 0.09" |
